ZWZ Thrust Ball Bearings: High-Precision Axial Load Solutions

ZWZ is a leading manufacturer of precision thrust ball bearings for global industrial machinery, OEM equipment, and distribution networks. Built on ISO-certified manufacturing standards and rigorous quality control, our bearings deliver reliable axial load support, smooth rotation, and accurate shaft positioning.

Single Row Cylindrical Roller Bearing
ZWZ single row cylindrical roller bearings are built to handle heavy radial
Spherical Roller Bearing for Vibrating Machinery
ZWZ spherical roller bearings for vibrating machinery are based on a proven
Single Row Tapered Roller Bearing
ZWZ Single Row Tapered Roller bearings can only restrict axial displacement of
Single Row Deep Groove Ball Bearing
When it comes to reliable, versatile bearings for industrial use, ZWZ single
Double Shielded Deep Groove Ball Bearing
Built as a ruggedized upgrade to standard single-row deep groove ball bearings,
Double Sealed Deep Groove Ball Bearing
Double Sealed Deep Groove Ball Bearings Equipped with thickened double-sided
Single Shielded Deep Groove Ball Bearing
ZWZ Single Shielded Deep Groove Ball Bearings (suffix Z) are precision-forged
Single Sealed Deep Groove Ball Bearing
ZWZ RS single sealed deep groove ball bearings are built around a
Single Row Angular Contact Bearing
ZWZ single row angular contact ball bearings are precision-engineered rolling

ZWZ Company Advantages

Decades of Manufacturing Expertise

Backed by extensive industry experience and advanced production technology, ZWZ delivers world-class bearing solutions engineered for demanding global markets.

Large-Scale Production Capacity

State-of-the-art manufacturing facilities and efficient production lines enable stable, high-volume output to meet bulk distributor demands and tight delivery schedules.

Rigorous Quality Management

Fully compliant with ISO 9001, DIN, and ABMA standards, supported by end-to-end traceability from raw material analysis to final performance testing.

Global Export & OEM Support

Proven international distribution experience combined with robust technical customization capabilities to support global brand partners and custom industrial specifications.

Technical Specifications

Technical Parameter	Specification Range / Standard
Bearing Type	Thrust Ball Bearing (Single & Double Direction)
Dimension Series	ISO Dimension Series 511, 512, 513, 514, 522, 523, 524
Bore Size Range	Metric sizes from 10 mm up to 1000 mm+ (Custom sizes available)
Outer Diameter Range	Standard and customized industrial dimensions
Height / Thickness	Engineered per ISO tolerance standards
Ring & Ball Material	Premium GCr15 High-Carbon Chrome Steel (AISI 52100)
Cage Material	Stamped Steel, Machined Brass, or Polyamide (PA66)
Precision Grade	ISO Class Normal (P0), P6, P5, P4
Radial Internal Clearance	N/A (Optimized axial internal clearance per grade)
Lubrication Type	Open type (Grease or Oil lubrication by client)
Operating Temperature	-30°C to +150°C (Special high-temp options available up to 250°C)
Manufacturing Standards	ISO 9001, DIN 620, ABMA / ANSI Standards

Product Advantages

Optimized Axial Load Performance
Engineered with precise internal contact geometry to distribute heavy axial stresses evenly across all rolling elements. Guarantees stable and reliable operation under extreme, demanding industrial thrust force conditions.

Precision Machining & Long Service Life
Manufactured using high-purity GCr15 bearing steel subjected to advanced thermal control for superior hardness. Achieves exceptional wear resistance, microstructural stability, and extended fatigue life under continuous operation.

Separable Design for Easy Installation
Features independent shaft washers, housing washers, and cage assemblies that can be mounted separately. Significantly simplifies initial machinery assembly, routine field inspections, and replacement procedures.

Comprehensive Customization & Versatility
Available in extensive standard metric sizes as well as high-precision grades ranging from normal class up to P4. Offers flexible cage material options including stamped steel and machined brass to match specific speed demands.

Product Types

Single Direction Thrust Ball Bearings

Designed with a shaft washer, a housing washer, and a ball-and-cage assembly to support and transmit axial loads strictly in one direction. Features a compact, separable structure that ensures reliable vertical shaft positioning and simplified component installation.

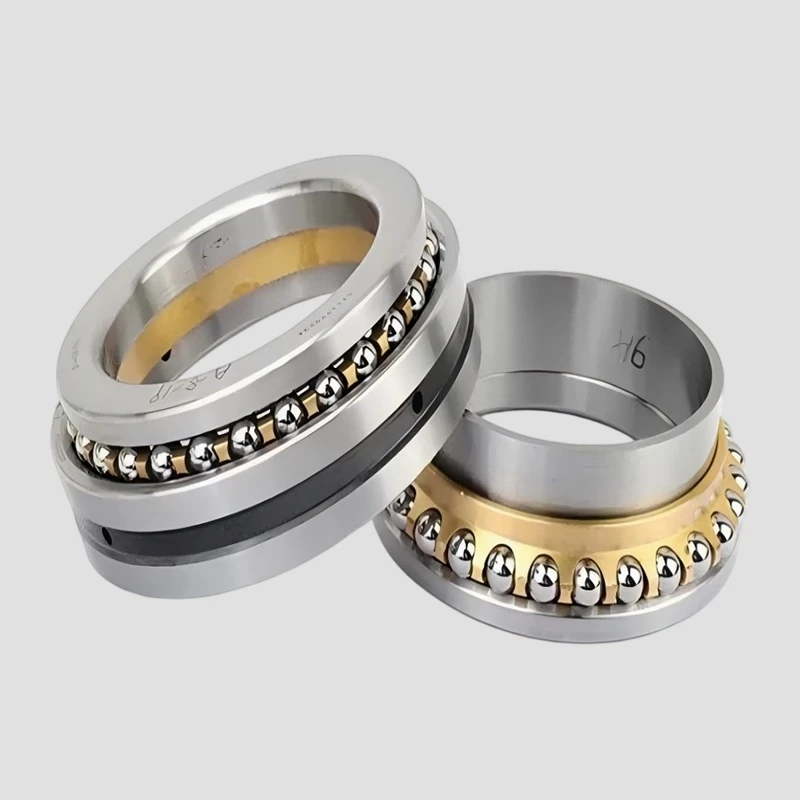

Double Direction Thrust Ball Bearings

Built with a central shaft washer and two housing washers with separate ball assemblies to support bidirectional loads. Provides reliable axial support and enhanced positioning accuracy for applications operating under frequent reversing forces.

Self-Aligning Thrust Ball Bearings

Incorporates a spherical housing washer paired with an aligning seat washer to actively absorb angular errors. Effectively compensates for minor mounting misalignments and shaft deflections during operational cycles.

Quality Assurance & Manufacturing

Every batch undergoes strict traceability and inspection:

Raw Material

Spectral analysis of GCr15 steel for structural integrity.

Heat Treatment

Precise thermal control for optimized hardness and wear resistance.

Dimensional Testing

Automated raceway and tolerance verification.

Performance Check

Noise, vibration, and functional load testing prior to dispatch.

Industry Applications

Single Direction Thrust Ball Bearing suppliers

Machine Tools

Rotary tables, spindle systems, and precision indexing mechanisms.

Gearboxes & Transmissions

Axial force compensation for heavy-duty rotating gears.

Pumps & Valves

Vertical pumps and industrial flow control systems.

Lifting Equipment

Cranes, hoists, and high-thrust rotary joints.

OEM & Custom Engineering

Custom Dimensions

Non-standard sizes and specialized cage configurations built to blueprints.

Private Labeling

Industrial export packaging and OEM branding support.

Scalable Production

High-volume manufacturing capacity for global distributors.

FAQ

Q: Can thrust ball bearings handle radial loads?

A: No. They are exclusively optimized for axial loads and should not be subjected to significant radial forces.

Q: Are these bearings rated for high-speed operation?

A: Yes. Precision grades (P5/P4) support moderate to high speeds when paired with proper lubrication.

Q: Does ZWZ accept custom drawings?

A: Yes. Our engineering team directly supports OEM customization based on client specifications or samples.

Q: What is the standard material used for ZWZ thrust bearing cages?

A: Standard cages are manufactured from pressed steel for general applications, while machined brass cages are used for heavy-duty, high-load, or high-speed industrial environments.

Q: How should I properly lubricate thrust ball bearings?

A: Depending on the operational speed and load, either high-performance lithium-base grease or circulating oil lubrication is recommended to minimize friction and prevent premature wear.

As one of the most professional thrust ball bearing manufacturers and suppliers in China, we also support customized service. Please feel free to wholesale durable thrust ball bearing made in China here and get pricelist from our factory. For price consultation, contact us.
